Almatec E-Series Plastic Air Operated Diaphragm Pump

Almatec E-Series Plastic Air Operated Diaphragm Pump

The development of the Almatec E-Series air-operated double diaphragm plastic pump is based on the extensive experience gained with successful pump models such as the Almatec A-Series pumps. The robust solid design with significant wall thicknesses, flange connection capability, ring-tightening structure, and other construction features ensure customer satisfaction in terms of safety, quality, and reliability. Six available pump sizes with optional equipment cover most application needs in the market. Pulsation dampeners are available as screw-on and flanged models.

The Almatec E-Series replaces the previous Almatec A-Series with improved features.

Key features of the Almatec E-Series air-operated pump:

• Solid block air-operated diaphragm pump
• Housing made of PE or PTFE, both also available in ATEX version
• Interchangeable with the previous A-Series

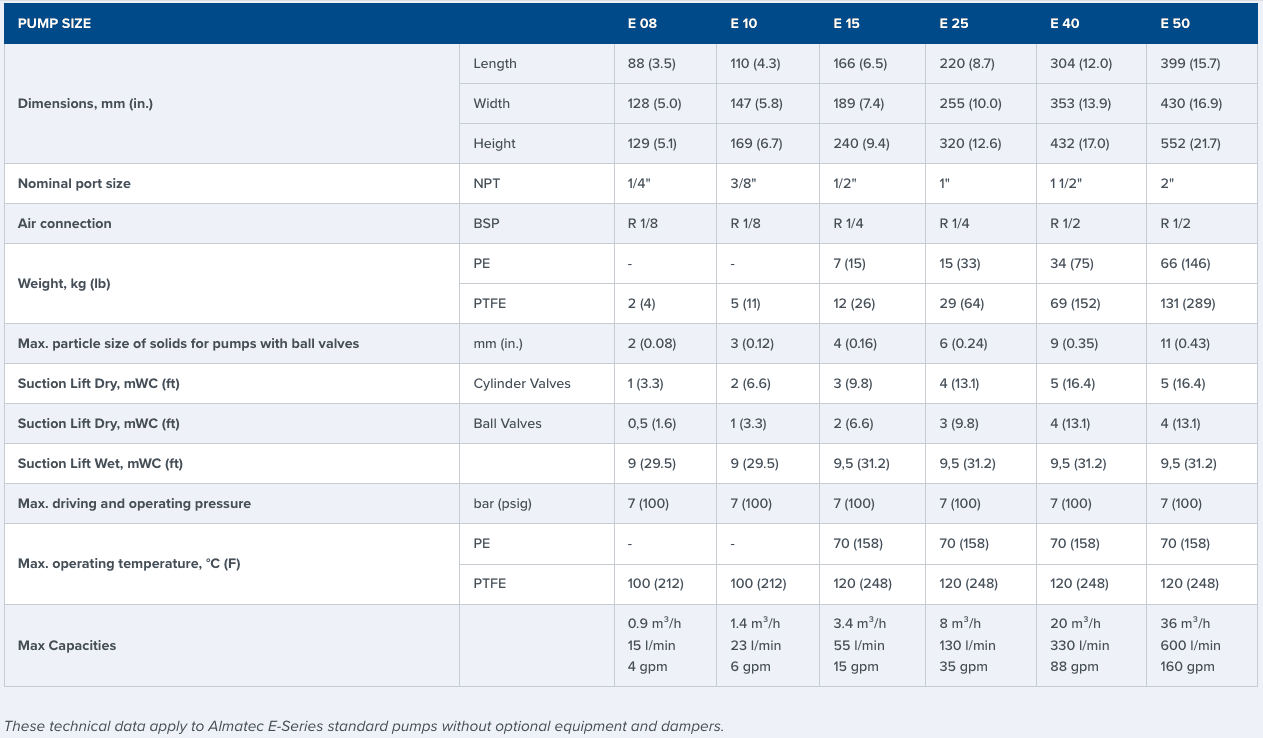

• Six sizes from DN 8 to DN 50
• Maximum capacities from 0.9 to 35 m³/h
• Increased pump safety due to the innovative ring-tightening structure
• Compared to the previous A-Series, increased capacity and reduced air consumption thanks to an optimized flow pattern
• Models available with ATEX, EC1935/2004, FDA, USP Class VI approval
• Exterior free of metal
• Optimized diaphragm fixing
• Various possible port configurations
• Ball or cylinder check valves with identical interior design
• Maintenance and lubrication-free air control system PERSWING P® without dead center
• Composite diaphragms with integrated metal core, no discs
• Resistant to dry running and overloading, self-priming
• Controllable via air volume
• No drive, no rotating parts, no shaft seal
• Integrated muffler
• Recessed tie rods
• Reduced noise level

Optional features:

• Screw-on or flanged pulsation damper
• Draining system
• Barrier chamber system
• Diaphragm monitoring
• Stroke counter
• Flange connection
• Transport cart
