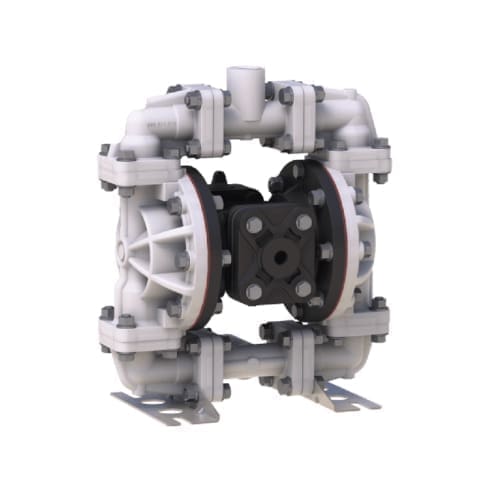

Sandpiper S05 Non-Metallic – ½” Air Operated Double Diaphragm Plastic Pump

The air operated double diaphragm plastic pump Sandpiper S05 ½” has established itself as a category leader and the top choice for a variety of industries and applications.

The air operated Sandpiper S05 ½” plastic pump offers incredible portability combined with the ability to handle corrosive fluids and small suspended solids. This diaphragm pump enables a wide range of applications with top-class performance.

The rugged bolted construction of the Sandpiper S05 plastic pump surpasses clamped construction, ensuring exceptional leak-free performance. The Sandpiper S05 plastic pump is designed to be operated with compressed air or nitrogen.

Trust the simplified construction of the Sandpiper S05 plastic pump:

Sandpiper’s original Air Distribution System (ADS) is completely interchangeable, repairable, and serviceable online. Other manufacturers frequently change ADS designs, creating interchangeability issues, stock obsolescence, and increased ownership costs. Only Sandpiper’s ESADS+ feature allows for complete ADS without removing the pump from service. Repair or cleaning in 5 minutes versus the competition’s 55 minutes.

Brand: Sandpiper® Brand:

Additional information

Max Flow Capacity

52 lpm (14 gpm)

Max Pressure

6,9 bar (100 psi)

Self priming capability

6,1 m (dry)

Liquid Inlet Ø

13 mm (1/2")

Liquid Outlet Ø

13 mm (1/2")

Certifications

CE, EAC, UKCA

ATEX

Available upon request
