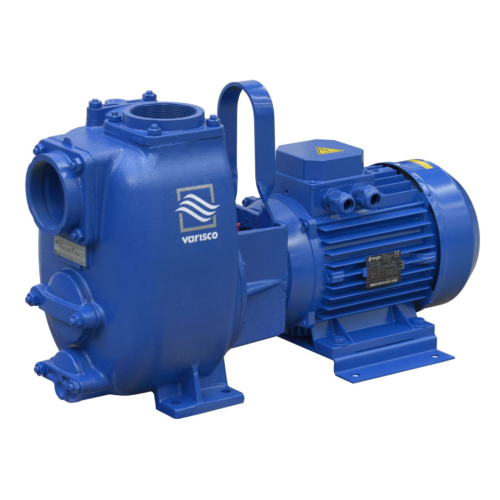

Varisco JE 3-140 G10 NT20 centrifugal pump
The Varisco JE 3-140 – NT20 – G10 is a 4 kW three-phase self-priming centrifugal pump designed to handle liquids containing solids up to 28 mm. Constructed from durable cast iron, it is ideal for industrial applications, construction sites, and emergency situations.
- Motor: 4 kW, 230–400 V, 50 Hz, 2900 rpm
- Materials: cast iron body and impeller, silicon carbide mechanical seal
- Connections: 3″ ports
- Self-priming capacity: up to 7.5 m
- Applications: handling polluted, heavy, and abrasive fluids with suspended solids
This pump is designed to provide rapid priming from demanding suction heights, simplifying system management and reducing maintenance time. The inspectable pump casing also acts as a water tank, allowing quick initial priming without auxiliary systems.
- Product code: 8381063547
- Brand: Varisco®
- Alternative codes: JE3140G10NT20
- SKU: 8381063547
- Additional information
- Request a quote
Additional information
| Liquid Inlet Ø | 76 mm (3") |
|---|---|
| Liquid Outlet Ø | 76 mm (3") |
| Connection Type | BSP |
| Max Flow Capacity | 1333 lpm (80 m3h) |
| Head | 21 m (69 ft) |
| Self priming capability | 7,5 m |
| Seals material | Nitrile (Buna-N, NBR) |
| Pump body material | Cast Iron |
| Impeller Material | Cast Iron |
| Motor | WEG W22 Premium |
| Mounting option | IM 2101 B34 |
| Power | 4 kW (5.5 hp) |
| Number of poles | 2 |
| RPM | 2900 |
| Certifications | CE, CSA, EAC, UL |
| Protection rating | IP55 |
| Actual weight | 90 kg |
