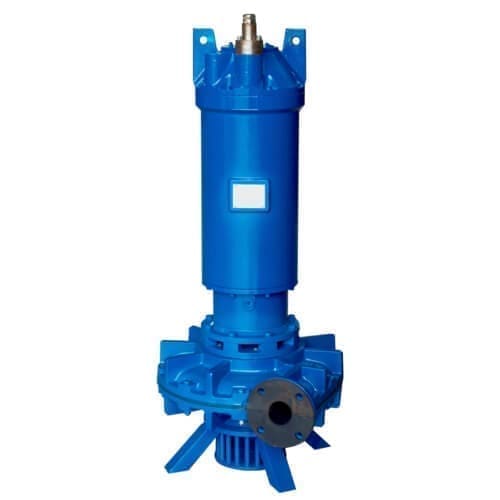

EPS-FD and EPS-ID Submersible Pumps with Front or Reverse Suction

EPS-FD and EPS-ID Submersible Pumps with Front or Reverse Suction

The EPS-FD and EPS-ID submersible centrifugal pumps are specifically designed for the transfer of highly abrasive liquids. These models are ideal for industrial applications that require effective management of fluids containing suspended solids, such as:

• Ceramic slurries
• Glazes
• Dirty water with suspended solids
• Sewage
• Sands and gravel
• Slivers from marble cutting
• Wastewater from steel plants
• Acids and other corrosive liquids

The EPS pumps are designed to ensure reliable operation even in challenging environments, with seals operating in an oil-filled sealed chamber or with water flushing, ensuring long durability. A dedicated probe monitors for potential water ingress into the sealed chamber, while an intake filter protects the pump from foreign bodies that could cause damage.

The open-type impellers allow large solids to pass through, making these pumps particularly versatile. For more detailed information regarding the size of solids that can be processed, we recommend consulting our technical department.

The pump bodies and impellers are made from special anti-abrasive rubber compounds or hard materials (such as hardalloy) to resist wear. For liquids with high temperatures, a version with a motor and mechanical seal cooling system is available, ensuring optimal performance even in extreme conditions.

Technical Features

• Body: Cast iron
• Internal Linings: Interchangeable with various types of wear-resistant rubber
• Impellers: Special alloys or rubber-coated for wear resistance
• Seals: NBR, Viton, PTFE, Silicone, EPDM, etc.
• Mechanical Seals: Widia, Silicon, Ceramic, Diamond, etc.
• Operating Temperatures: Nitrile coating from -10°C to +90°C
• Operating Temperatures: Natural rubber coating from -10°C to +60°C
• Solid Passage: Max sphere diameter 20 mm
• Max Pressure: 1450 rpm, 1.3 bar
